80mm Forged Steel Balls

Uniform hardness

Unbreakable

High wear resistance

High impact value

High combined efficiency of grinding mill


  Contact Now E-Mail Telephone WhatsApp
Product Details

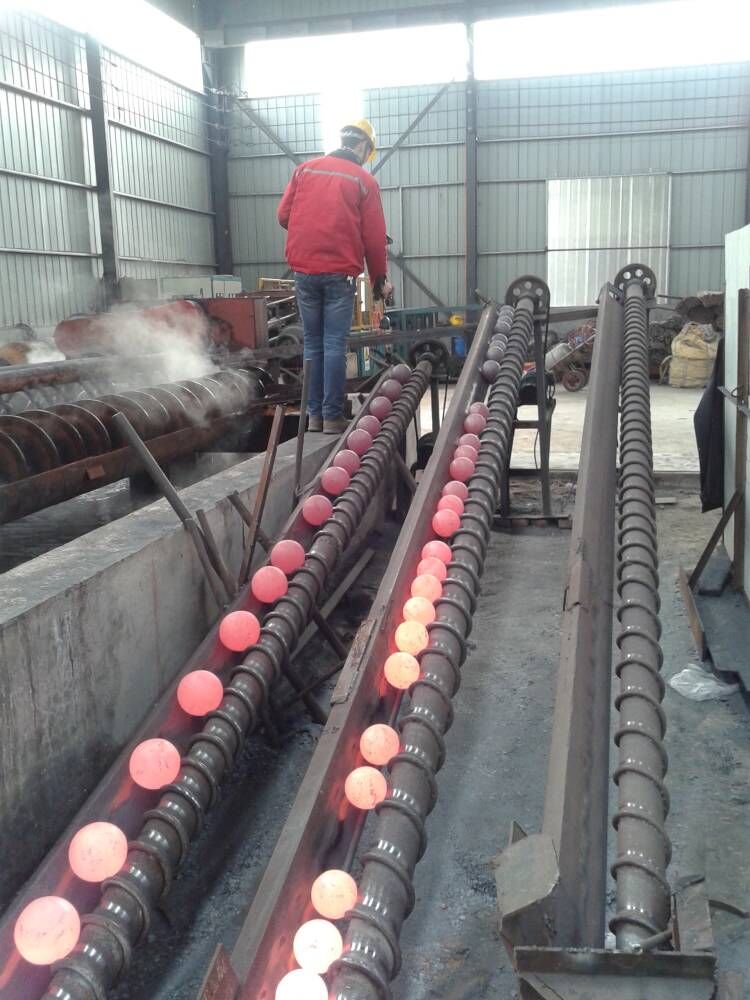

Our enterprise shandong jinchi is a professional manufacture of forged metal balls,that is produced by advanced automatic rolling device ( balls from 20mm-70mm) + labor air hammer ( 80mm-150mm) with unique heating remedy and strict exceptional manage systerm , which make our cast grinding balls high wear resistance,unbreakable and high impact price.


forged steel balls


Materials

C%

Si%

Mn%

P%

S%

Cr%

B2

0.70-0.85

0.17-0.37

0.70-1.00

≤0.035

≤0.035

0.4-0.6

B2-1

0.55-0.70

0.15-0.30

0.65-0.85

≤0.020

≤0.020

0.70-1.10

High Carbon B2

0.85-1.10

0.15-0.45

0.40-1.20

≤0.035

≤0.035

0.20-1.10

B3

0.58-0.66

1.70-1.90

0.68-0.80

≤0.030

≤0.030

0.78-0.90

45#

0.42-0.50

0.17-0.37

0.5-0.8

≤0.035

≤0.035

0.25max

B4

0.65-0.75

1.20-1.40

0.50-0.70

≤0.025

≤0.025

0.85-1.00

B6

0.75-0.90

0.17-0.37

0.8-1.02

≤0.035

≤0.035

0.88-0.98

B6-1

0.82-0.90

0.15-0.35

0.90-1.05

≤0.020

≤0.020

0.88-0.98

BU

0.95-1.05

0.15-0.35

0.95-1.05

≤0.025

≤0.025

0.45-0.55

1090

0.90-1.10

0.17-0.37

0.60-0.90

≤0.025

≤0.025

≤0.025

42CrMo

0.38-0.45

0.20-0.40

0.50-0.80

≤0.035

≤0.035

0.90-1.20

40Cr

0.37-0.45

0.20-0.40

0.50-0.80

≤0.035

≤0.035

0.80-1.10

65MN

0.62-0.70

0.17-0.37

0.90-1.20

≤0.035

≤0.035

≤0.25

60MN

0.57-0.65

0.17-0.37

0.70-1.00

≤0.035

≤0.035

≤0.25

50MN

0.48-0.56

0.17-0.37

0.70-1.00

≤0.035

≤0.035

≤0.25


 Guarantee measures for raw material ordering

Our company has strategic cooperation agreements with well-known domestic state-owned enterprises, such as Laiwu branch of Shandong Iron and Steel Co., Ltd., Chengde Jianlong Special Steel Co., Ltd. and Huaigang Special Steel Co., Ltd. of Jiangsu shagang group. Each stage from material ordering to material inspection is reviewed and approved by technical experts, and finally determined by the technical director after being signed and confirmed by the relevant responsible person.



Production equipment performance assurance measures

All of them are produced with the most advanced and professional equipment, and cooperate with the process and quality inspection personnel to make the original records of various parameters in the production process, and operate and produce in strict accordance with the process requirements and specifications.



Process technology and quality inspection performance guarantee

Set up the project process specialist and quality inspector, set up the process in strict accordance with the parameters and indicators required by the contract and supervise the implementation of the process. The quality inspector shall track and record each parameter in the whole process.



Packaging and transportation performance guarantee

The packaging wellknown of the product is strictly according with the international standards, to make sure that it may meet the lifting necessities for normally. our corporation has hooked up a strategic partnership gadget with several key transport organizations and logistics companies at domestic and overseas. we've got transportation coverage for every vehicle, which greatly enhances our potential to withstand dangers.


Packing of Grinding Rolling Balls

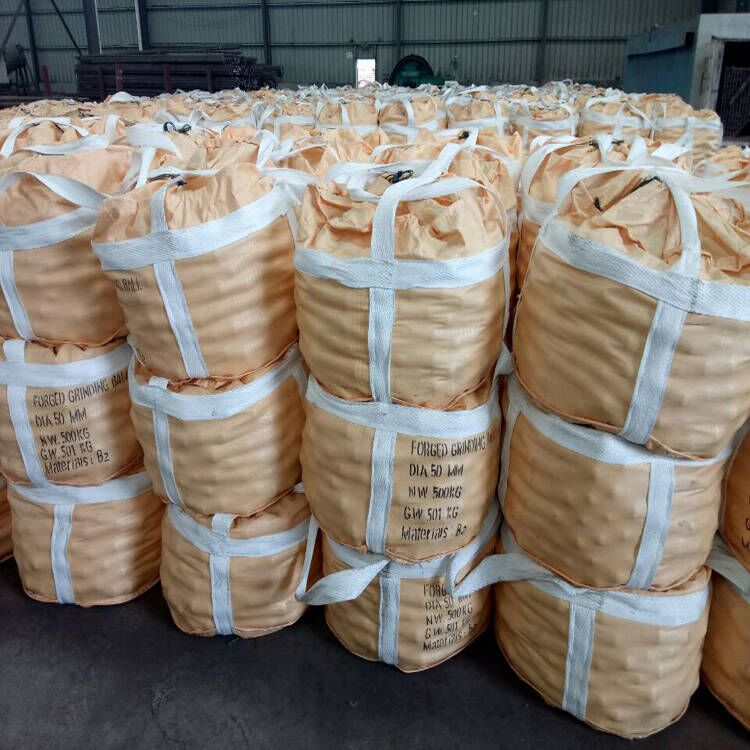

(1)Container Bag:Dia20mm-150mm  1000kg/Container Bag

(2)Steel Drums:Dia20mm-80mm 900kg/Drum  Dia90mm-150mm 850kg/Drums

(3)Steel Drum on Pallet or Bag on Pallet
