Forged Grinding Balls China

1. Grade: 45#,50Mn,60Mn,65Mn,B2,B3,BL,BG

2. Diameter: 15mm-150mm

3. Hardness: HRC 55-65

4. Breakage Rate:<1%

5. Impact Value: >12j/Cm^2

6. Falling ball times: ≥20000s

Contact Now E-Mail Telephone WhatsApp

Product Details

Welcome to Jinchi, the main maker of steel crushing media, very much like high chrome crushing balls, fashioned crushing balls, crushing poles, cylpebs and ball factory wear parts. Has served the concrete, mineral handling, power plant, compound and different enterprises over 30 years.

Crushing media is an important ware broadly utilized in concrete creation, mining industry-particularly in gold, silver, copper and zinc mines, power stations for coal crushing, limestone crushing for pipe gas desulphurisation, circulated air through building block producing, etc.

We offer incentive for our clients through our certified crushing items, proficient help and trustworthy conveyance.

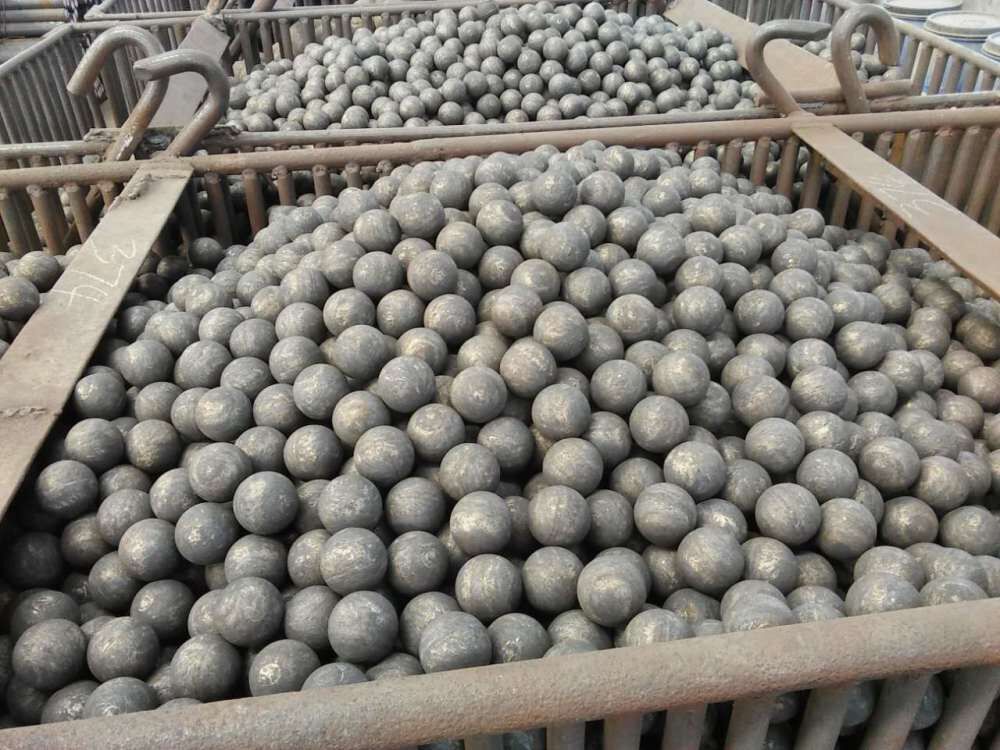

Forged Grinding Balls

Materials	C%	Si%	Mn%	P%	S%	Cr%
B2	0.70-0.85	0.17-0.37	0.70-1.00	≤0.035	≤0.035	0.4-0.6
B2-1	0.55-0.70	0.15-0.30	0.65-0.85	≤0.020	≤0.020	0.70-1.10
High Carbon B2	0.85-1.10	0.15-0.45	0.40-1.20	≤0.035	≤0.035	0.20-1.10
B3	0.58-0.66	1.70-1.90	0.68-0.80	≤0.030	≤0.030	0.78-0.90
45#	0.42-0.50	0.17-0.37	0.5-0.8	≤0.035	≤0.035	0.25max
B4	0.65-0.75	1.20-1.40	0.50-0.70	≤0.025	≤0.025	0.85-1.00
B6	0.75-0.90	0.17-0.37	0.8-1.02	≤0.035	≤0.035	0.88-0.98
B6-1	0.82-0.90	0.15-0.35	0.90-1.05	≤0.020	≤0.020	0.88-0.98
BU	0.95-1.05	0.15-0.35	0.95-1.05	≤0.025	≤0.025	0.45-0.55
1090	0.90-1.10	0.17-0.37	0.60-0.90	≤0.025	≤0.025	≤0.025
42CrMo	0.38-0.45	0.20-0.40	0.50-0.80	≤0.035	≤0.035	0.90-1.20
40Cr	0.37-0.45	0.20-0.40	0.50-0.80	≤0.035	≤0.035	0.80-1.10
65MN	0.62-0.70	0.17-0.37	0.90-1.20	≤0.035	≤0.035	≤0.25
60MN	0.57-0.65	0.17-0.37	0.70-1.00	≤0.035	≤0.035	≤0.25
50MN	0.48-0.56	0.17-0.37	0.70-1.00	≤0.035	≤0.035	≤0.25

Explanation of quality control

Guarantee measures for raw material ordering

Our company has strategic cooperation agreements with well-known domestic state-owned enterprises, such as Laiwu branch of Shandong Iron and Steel Co., Ltd., Chengde Jianlong Special Steel Co., Ltd. and Huaigang Special Steel Co., Ltd. of Jiangsu shagang group. Each stage from material ordering to material inspection is reviewed and approved by technical experts, and finally determined by the technical director after being signed and confirmed by the relevant responsible person.

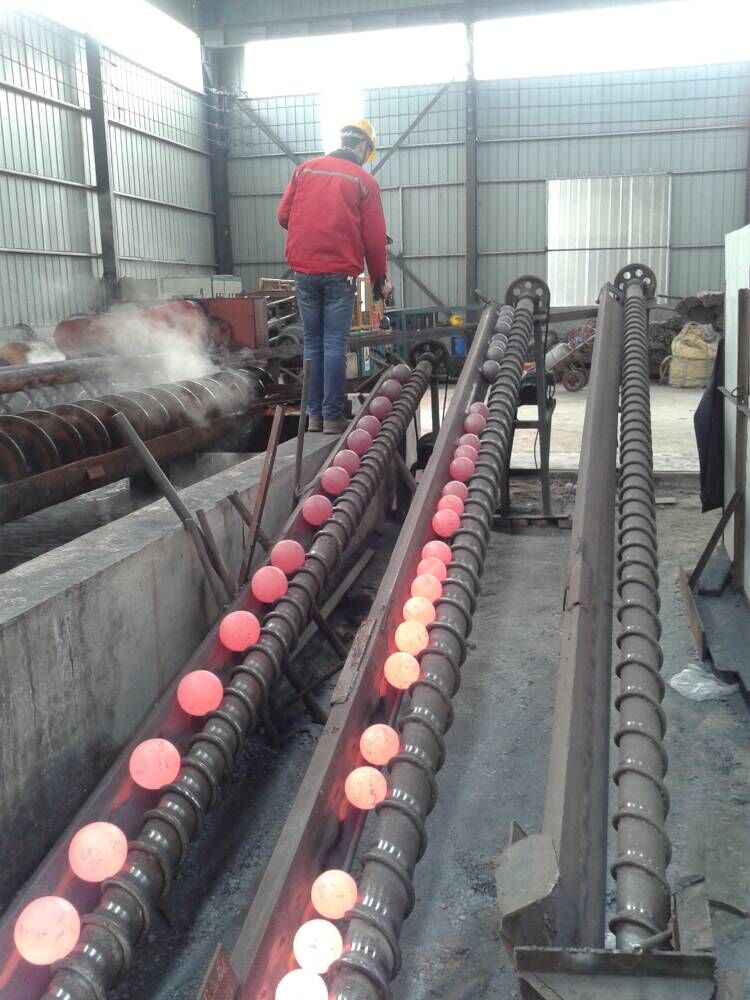

Production equipment performance assurance measures

All of them are produced with the most advanced and professional equipment, and cooperate with the process and quality inspection personnel to make the original records of various parameters in the production process, and operate and produce in strict accordance with the process requirements and specifications.

Process technology and quality inspection performance guarantee

Set up the project process specialist and quality inspector, set up the process in strict accordance with the parameters and indicators required by the contract and supervise the implementation of the process. The quality inspector shall track and record each parameter in the whole process.

Packaging and transportation performance guarantee

The packaging standard of the product is strictly in accordance with the international standards, to ensure that it can meet the lifting requirements for many times. Our company has established a strategic partnership system with several key shipping companies and logistics companies at home and abroad. We have transportation insurance for each vehicle, which greatly enhances our ability to resist risks.

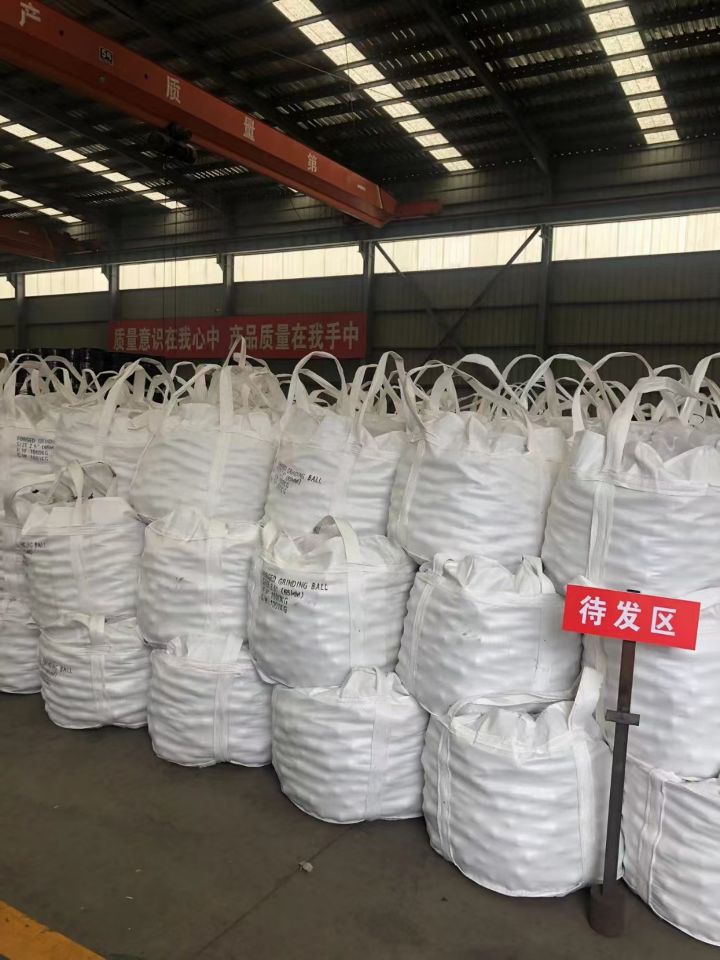

Packing of Grinding Rolling Balls

(1)Container Bag:Dia20mm-150mm 1000kg/Container Bag

(2)Steel Drums:Dia20mm-80mm 900kg/Drum Dia90mm-150mm 850kg/Drums

(3)Steel Drum on Pallet or Bag on Pallet

Materials	C%	Si%	Mn%	P%	S%	Cr%
B2	0.70-0.85	0.17-0.37	0.70-1.00	≤0.035	≤0.035	0.4-0.6
B2-1	0.55-0.70	0.15-0.30	0.65-0.85	≤0.020	≤0.020	0.70-1.10
High Carbon B2	0.85-1.10	0.15-0.45	0.40-1.20	≤0.035	≤0.035	0.20-1.10
B3	0.58-0.66	1.70-1.90	0.68-0.80	≤0.030	≤0.030	0.78-0.90
45#	0.42-0.50	0.17-0.37	0.5-0.8	≤0.035	≤0.035	0.25max
B4	0.65-0.75	1.20-1.40	0.50-0.70	≤0.025	≤0.025	0.85-1.00
B6	0.75-0.90	0.17-0.37	0.8-1.02	≤0.035	≤0.035	0.88-0.98
B6-1	0.82-0.90	0.15-0.35	0.90-1.05	≤0.020	≤0.020	0.88-0.98
BU	0.95-1.05	0.15-0.35	0.95-1.05	≤0.025	≤0.025	0.45-0.55
1090	0.90-1.10	0.17-0.37	0.60-0.90	≤0.025	≤0.025	≤0.025
42CrMo	0.38-0.45	0.20-0.40	0.50-0.80	≤0.035	≤0.035	0.90-1.20
40Cr	0.37-0.45	0.20-0.40	0.50-0.80	≤0.035	≤0.035	0.80-1.10
65MN	0.62-0.70	0.17-0.37	0.90-1.20	≤0.035	≤0.035	≤0.25
60MN	0.57-0.65	0.17-0.37	0.70-1.00	≤0.035	≤0.035	≤0.25
50MN	0.48-0.56	0.17-0.37	0.70-1.00	≤0.035	≤0.035	≤0.25
