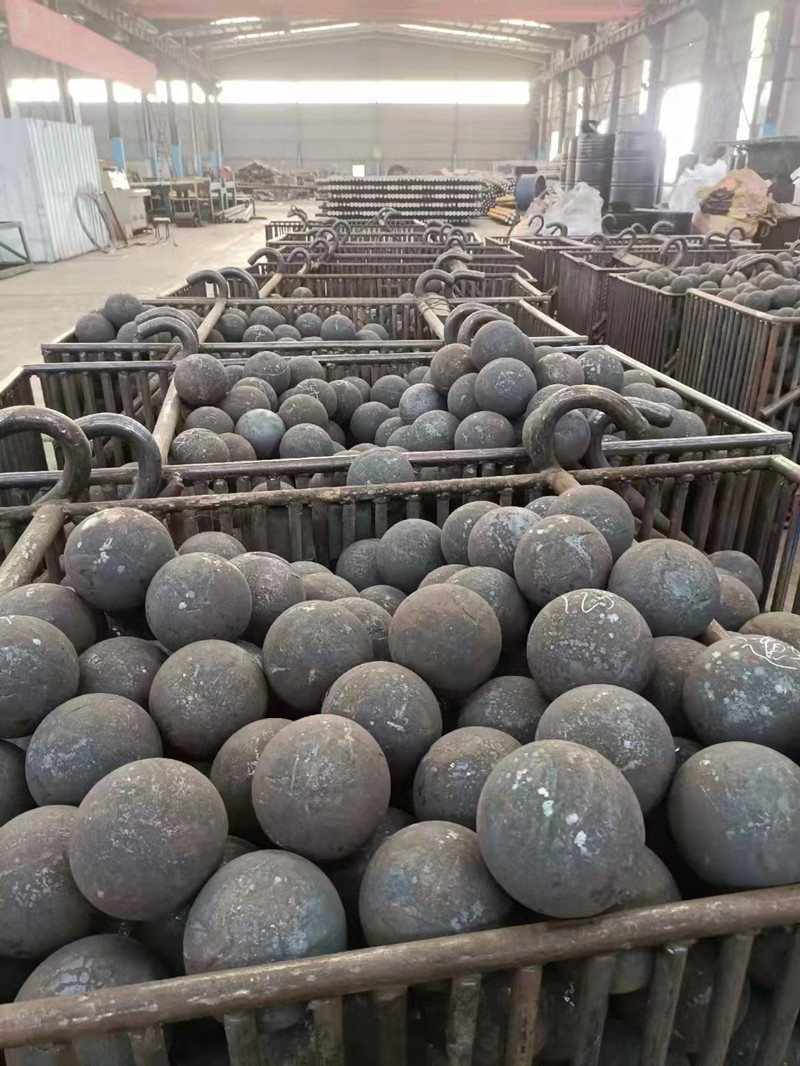

Forged Grinding Steel Ball Supplier
Size: 15mm-130mm
Uniform Hardness;
High Wear Resistance;
Low Breakage Rate;
Without loss of round;
High impact toughness;
breakage rate: ＜1%
Annual production is over 100.000tons;
Forged Grinding Steel Ball Supplier is here, with 26 years in China. products are exported to more than 30 countries and regions, with an annual production capacity of 100,000 tons, and cooperation with many large mines and cement plants for many years.
Our company have professional and technical personnel and quality control team, the main testing equipment has the ultrasonic flaw detector, Germany imports spectrum analyzer, metal cutting core-pulling machine, metallographic microscope, rockwell hardness tester, impact tester, drop test machine, hand-held infrared thermometer, vernier caliper, etc., quality control and inspection of steel ball.
The export products have passed SGS inspection, BV testing, etc., the pursuit of 100% qualified quality as the goal.
Chemical Composition of Forged Grinding Steel Ball:
Materials | C% | Si% | Mn% | P% | S% | Cr% |
B2 | 0.70-0.85 | 0.17-0.37 | 0.70-1.00 | ≤0.035 | ≤0.035 | 0.4-0.6 |
B2-1 | 0.55-0.70 | 0.15-0.30 | 0.65-0.85 | ≤0.020 | ≤0.020 | 0.70-1.10 |
High Carbon B2 | 0.85-1.10 | 0.15-0.45 | 0.40-1.20 | ≤0.035 | ≤0.035 | 0.20-1.10 |
B3 | 0.58-0.66 | 1.70-1.90 | 0.68-0.80 | ≤0.030 | ≤0.030 | 0.78-0.90 |
45# | 0.42-0.50 | 0.17-0.37 | 0.5-0.8 | ≤0.035 | ≤0.035 | 0.25max |
B4 | 0.65-0.75 | 1.20-1.40 | 0.50-0.70 | ≤0.025 | ≤0.025 | 0.85-1.00 |
B6 | 0.75-0.90 | 0.17-0.37 | 0.8-1.02 | ≤0.035 | ≤0.035 | 0.88-0.98 |
B6-1 | 0.82-0.90 | 0.15-0.35 | 0.90-1.05 | ≤0.020 | ≤0.020 | 0.88-0.98 |
BU | 0.95-1.05 | 0.15-0.35 | 0.95-1.05 | ≤0.025 | ≤0.025 | 0.45-0.55 |
1090 | 0.90-1.10 | 0.17-0.37 | 0.60-0.90 | ≤0.025 | ≤0.025 | ≤0.025 |
42CrMo | 0.38-0.45 | 0.20-0.40 | 0.50-0.80 | ≤0.035 | ≤0.035 | 0.90-1.20 |
40Cr | 0.37-0.45 | 0.20-0.40 | 0.50-0.80 | ≤0.035 | ≤0.035 | 0.80-1.10 |
65MN | 0.62-0.70 | 0.17-0.37 | 0.90-1.20 | ≤0.035 | ≤0.035 | ≤0.25 |
60MN | 0.57-0.65 | 0.17-0.37 | 0.70-1.00 | ≤0.035 | ≤0.035 | ≤0.25 |
50MN | 0.48-0.56 | 0.17-0.37 | 0.70-1.00 | ≤0.035 | ≤0.035 | ≤0.25 |
Specification of Grinding Steel Ball:
Diameter(mm) | Diameter Tolerance(mm) | Surface Hardness(HRC) | Impact Toughness(j/cm2) |
Φ20 | +2， —1 | ＞60HRC | ≥12 |
Φ25 | |||
Φ30 | |||
Φ40 | |||
Φ50 | |||
Φ60 | +3， —2 | ||
Φ70 | |||
Φ80 | |||
Φ90 | |||
Φ100 | +4， —2 | ||
Φ110 | |||
Φ120 | ＞58HRC | ||
Φ130 | |||
Φ140 | +4， —3 | ＞55HRC | |
Φ150 |
We are a professional manufacturer of grinding steel balls, free samples can be supply for your inspection and testing, welcome to visit the factory at any time, looking forward to cooperating with you.
