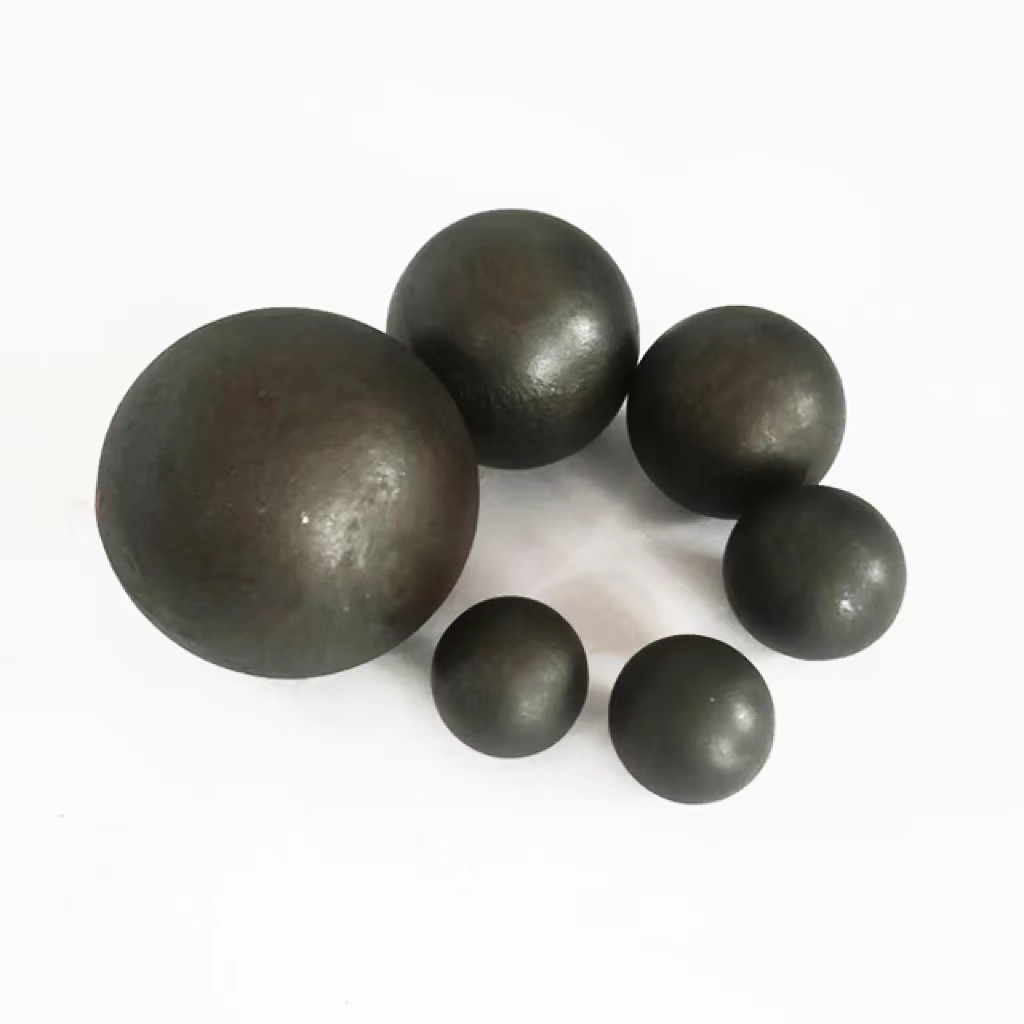

Forged Grinding Media Steel Ball
1. Material Quality: We buy steel materials directly from Laigang Group, JIYUAN, which are the biggest steel companies in China who specially produce steel for grinding balls.
2. Product Range: We produce steel grinding balls according to customer requirement. Both cast & forged type and have complete range.
3. Capacity: Our production capacity is now about 100000 MT. This huge production capacity ensures nonstop continuous delivery of media to you.
4. Production facility: At present we use advanced automatic production line which makes sure the quality is highly consistent.
5. Delivery: We provide fast delivery after order confirmation due to automated production system. It can be as quick as 14 days/ 2 weeks depending on requirement.
6. Quality Control: Our company has an independent laboratory, the advanced and accurate lab equipment, to ensure that each step of the production process is performed in accordance with the quality standards.
Shandong Jinchi Heavy Industry Joint-stock Co.,LTD is a professional manufacturer of solid grinding media metallic ball merchandise. the primary merchandise of our organisation are Forged Grinding Media Steel Ball grinding media balls, grinding rods, cylpebs, mill liners and metal flanges, with specifications all attaining worldwide standards and annual manufacturing capacity is over 100,000 heaps.
Fantastic uncooked substances, superior complete-computerized production line, specific heat remedy technology and strict fine manage gadget, those four most important blessings ensure our merchandise have solid effect performance, high put on resistance and excessive mixed efficiency of grinding mill.
Brand | Materials | C | Mn | Si | Cr | S | P | V | |
JC-1 | 50Mn | 0.48-0.56 | 0.70-1.0 | 0.17-0.37 | ≤0.25 | ≤0.035 | ≤0.035 | ||
JC-2 | 60Mn | 0.57-0.65 | 0.70-1.0 | 0.17-0.37 | ≤0.25 | ≤0.035 | ≤0.035 | ||
JC-3 | 65Mn | 0.62-0.70 | 0.90-1.2 | 0.17-0.37 | ≤0.25 | ≤0.035 | ≤0.035 | ||
JC-4 | B2 | 0.72-0.85 | 0.70-0.80 | 0.17-0.37 | 0.40-0.70 | ≤0.035 | ≤0.035 | ||
JC-5 | B3 | 0.58-0.70 | 0.70-1.00 | 1.50-1.90 | 0.70-0.90 | ≤0.035 | ≤0.035 | ||
JC-6 | B6 | 0.80-0.95 | 0.80-1.00 | 0.17-0.37 | 0.80-1.00 | ≤0.035 | ≤0.035 | ||
Specification of Grinding Balls | |||||||||
Nominal diameter | Diameteical Tolerance | Weight of single ball in average
| Surface hardness
| Impact toughness
| |||||
(mm) | (mm) | (g) | (HRC) | (j/cm2 ) | |||||
Φ20 | +2 -1 | 32 | 60-65 |
≥12 | |||||
Φ25 | 64 | ||||||||
Φ30 | 110 | ||||||||
Φ40 | 263 | ||||||||
Φ50 | 513 | ||||||||
Φ60 | +3 -2 | 888 | |||||||
Φ70 | 1410 | ||||||||
Φ80 | 2104 | ||||||||
Φ90 | 2996 | ||||||||
Φ100 | 4110 | ||||||||
The company has an independent laboratory, the advanced and accurate lab equipment, to ensure that each step of the production process is performed in accordance with the quality standards. Moreover, our company has been accredited with ISO9001 Quality Certification, OHSAS18001 Occupational health and safety certification and ISO14001 environmental management system certification. Our clients are from all over the world, such as Australia, South Africa, Ghana, Korea, Canada, USA etc. with two branch offices in Peru and Australia. The company has sole right to handle import and export business, has been striving to provide quality products for clients. In addition, the company also provides reliable service system with favorable product prices. All these gains long term reputation for the company.
Shandong Jinchi Heavy Industry Joint-stock Co.,LTD is looking forward to cooperating with you to create a better future!
