Ball Mill Forged And Casting Grinding Ball
Our Ball Mill Forged And Casting Grinding Ball have following advantages:
1)Uniform hardness
2)Non crushing and grinding resistance
3)High impact value
Ball Mill Forged And Casting Grinding Ball

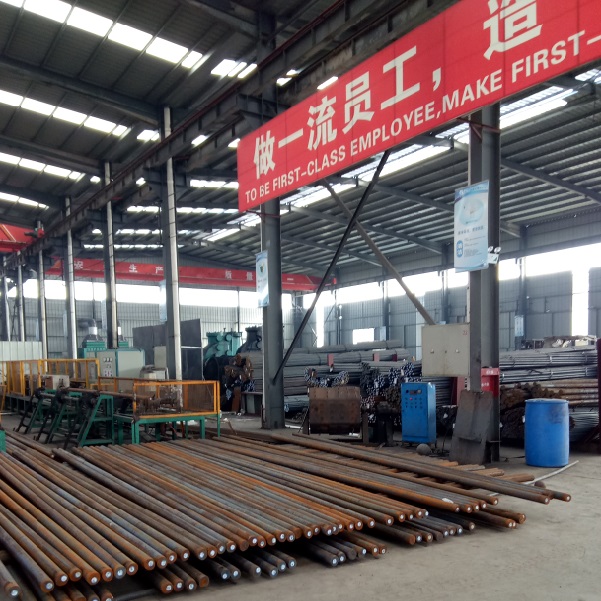

Shandong Jinchi Heavy Industry Joint-stock Co.,LTD is a professional manufacturer and developer of Ball mill forged and casting grinding ball ,our products are produced by new method of automatic production line, which ensures that the composition of the material, the uniform hardness of the inside and outside. The wear-resistant industry is improved rapidly.

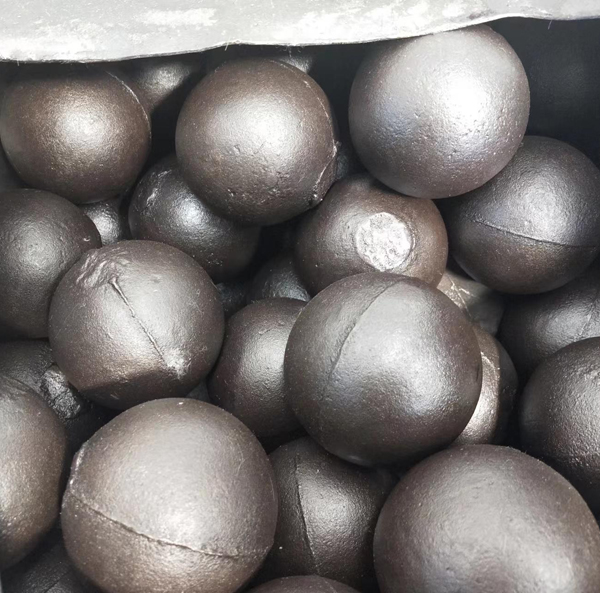

We can supply casting balls with High and Low Cr:
Chemical Components | ||||||||
Type | Chemical components | |||||||
C | Si | Mn | Cr | Mo | Cu | P | S | |
Low-Cr | 1.8-3.3 | ≤1.5 | 0.3-1.5 | 1-3 | ≤1.0 | ≤0.8 | ≤0.10 | ≤0.10 |
Medium-Cr | 1.8-3.3 | ≤1.2 | 0.3-1.5 | 4-9 | ≤1.5 | ≤0.8 | ≤0.10 | ≤0.10 |
High-Cr | 1.8-3.3 | ≤1.2 | 0.3-1.5 | 10-18 | ≤1.0 | ≤1.2 | ≤0.10 | ≤0.06 |
Superhigh-Cr | 1.8-3.3 | ≤1.2 | 0.3-1.5 | 19-35 | ≤2.0 | ≤1.2 | ≤0.10 | ≤0.06 |

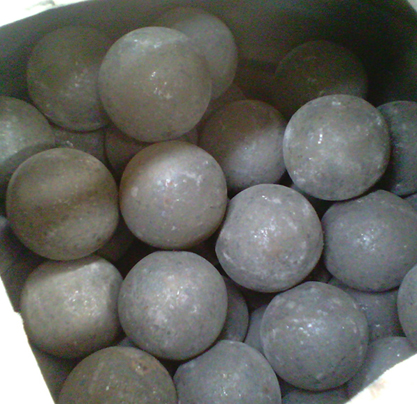

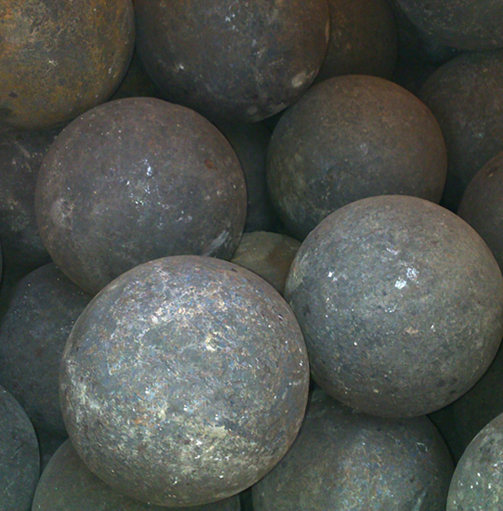

We can supply forged balls with different steel grades:
Brand | Materials | C | Mn | Si | Cr | S | P | V | |
JC-1 | 50Mn | 0.48-0.56 | 0.70-1.0 | 0.17-0.37 | ≤0.25 | ≤0.035 | ≤0.035 | ||
JC-2 | 60Mn | 0.57-0.65 | 0.70-1.0 | 0.17-0.37 | ≤0.25 | ≤0.035 | ≤0.035 | ||
JC-3 | 65Mn | 0.62-0.70 | 0.90-1.2 | 0.17-0.37 | ≤0.25 | ≤0.035 | ≤0.035 | ||
JC-4 | B2 | 0.72-0.85 | 0.70-0.80 | 0.17-0.37 | 0.40-0.70 | ≤0.035 | ≤0.035 | ||
JC-5 | B3 | 0.58-0.70 | 0.70-1.00 | 1.50-1.90 | 0.70-0.90 | ≤0.035 | ≤0.035 | ||
JC-6 | B6 | 0.80-0.95 | 0.80-1.00 | 0.17-0.37 | 0.80-1.00 | ≤0.035 | ≤0.035 | ||
Specification of Grinding Balls | |||||||||
Nominal diameter | Diameter Tolerance | Weight of single ball in average
| Surface hardness
| Impact toughness
| |||||
(mm) | (mm) | (g) | (HRC) | (j/cm2 ) | |||||
Φ20 | +2 -1 | 32 | 60-65 |
≥12 | |||||
Φ25 | 64 | ||||||||
Φ30 | 110 | ||||||||
Φ40 | 263 | ||||||||
Φ50 | 513 | ||||||||
Φ60 | +3 -2 | 888 | |||||||
Φ70 | 1410 | ||||||||
Φ80 | 2104 | ||||||||
Φ90 | 2996 | ||||||||
Φ100 | 4110 | ||||||||
Product Features:
1. Uniform hardness
2. High grinding resistance
3. High impact value
4. Low breakage: less than 1%
Shandong Jinchi Heavy Industry Joint-stock Co.,LTD is looking forward to cooperating with you to create a better future!
