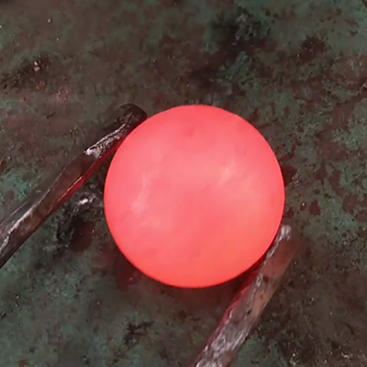

Grinding Steel Ball for Mining Industry
We produce and sell Grinding Steel Ball for Mining industry since 1995.
Our Grinding Steel Ball have following advantages:
Uniform hardness: 60-65HRC
Low breakage: below 1%
High grinding resistance: 10-30% longer use
High impact value
High comprehensive efficiency of the mill
We produce and sell Grinding Steel Ball for Mining industry since 1995.
Our Grinding Steel Ball have following advantages:
1. Material Quality: We buy steel materials directly from Laigang Group, JIYUAN, which are the biggest steel companies in China who specially produce steel for grinding balls.
2. Production facility: At present we use advanced automatic production line which makes sure the quality is highly consistent.
3. Quality Control: Our company has an independent laboratory, the advanced and accurate lab equipment, to ensure that each step of the production process is performed in accordance with the quality standards.
Years of accumulation of technology and experience have made our product quality control increasingly perfect, and we have been able to see more and more customers adding value due to the use of our products.
We can supply casting balls with High and Low Cr:
Chemical Components | ||||||||
Type | Chemical components | |||||||
C | Si | Mn | Cr | Mo | Cu | P | S | |
Low-Cr | 1.8-3.3 | ≤1.5 | 0.3-1.5 | 1-3 | ≤1.0 | ≤0.8 | ≤0.10 | ≤0.10 |
Medium-Cr | 1.8-3.3 | ≤1.2 | 0.3-1.5 | 4-9 | ≤1.5 | ≤0.8 | ≤0.10 | ≤0.10 |
High-Cr | 1.8-3.3 | ≤1.2 | 0.3-1.5 | 10-18 | ≤1.0 | ≤1.2 | ≤0.10 | ≤0.06 |
Superhigh-Cr | 1.8-3.3 | ≤1.2 | 0.3-1.5 | 19-35 | ≤2.0 | ≤1.2 | ≤0.10 | ≤0.06 |
We can supply forged balls with different steel grades:
Brand | Materials | C | Mn | Si | Cr | S | P | V | |
JC-1 | 50Mn | 0.48-0.56 | 0.70-1.0 | 0.17-0.37 | ≤0.25 | ≤0.035 | ≤0.035 | ||
JC-2 | 60Mn | 0.57-0.65 | 0.70-1.0 | 0.17-0.37 | ≤0.25 | ≤0.035 | ≤0.035 | ||
JC-3 | 65Mn | 0.62-0.70 | 0.90-1.2 | 0.17-0.37 | ≤0.25 | ≤0.035 | ≤0.035 | ||
JC-4 | B2 | 0.72-0.85 | 0.70-0.80 | 0.17-0.37 | 0.40-0.70 | ≤0.035 | ≤0.035 | ||
JC-5 | B3 | 0.58-0.70 | 0.70-1.00 | 1.50-1.90 | 0.70-0.90 | ≤0.035 | ≤0.035 | ||
JC-6 | B6 | 0.80-0.95 | 0.80-1.00 | 0.17-0.37 | 0.80-1.00 | ≤0.035 | ≤0.035 | ||
Specification of Grinding Balls | |||||||||
Nominal diameter | Diameteical Tolerance | Weight of single ball in average
| Surface hardness
| Impact toughness
| |||||
(mm) | (mm) | (g) | (HRC) | (j/cm2 ) | |||||
Φ20 | +2 -1 | 32 | 60-65 |
≥12 | |||||
Φ25 | 64 | ||||||||
Φ30 | 110 | ||||||||
Φ40 | 263 | ||||||||
Φ50 | 513 | ||||||||
Φ60 | +3 -2 | 888 | |||||||
Φ70 | 1410 | ||||||||
Φ80 | 2104 | ||||||||
Φ90 | 2996 | ||||||||
Φ100 | 4110 | ||||||||
Product Features of Grinding Steel Ball for Mining:
Uniform hardness
Non crushing and grinding resistance
High impact value
We offer value for our customers through our qualified grinding ball, grinding media products, professional service and dependable delivery. Look forward to coooperate with you!
