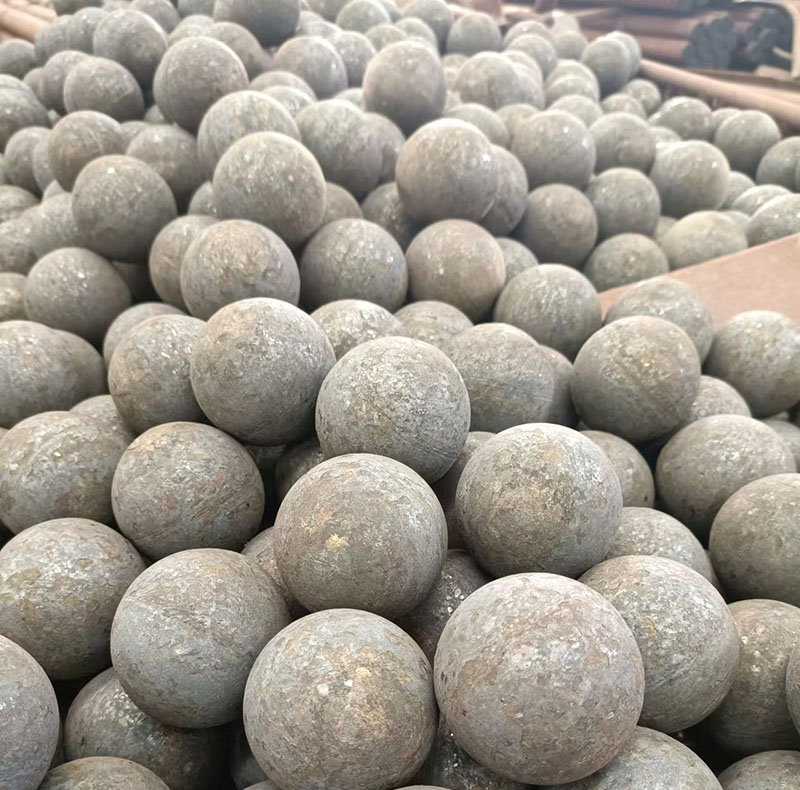

Hot Rolled Steel Ball

Hot rolled steel balls have precise size, round geometry, high hardness and good mechanical properties, and have excellent quality of wear resistance, no deformation and no cracking. Its characteristics are as follows:

1. High overall hardness: the surface hardness can reach 58-65hrc, the volume hardness can reach 55-62hrc, and the hardness gradient distribution is uniform;

2. High impact toughness: the impact toughness is greater than 12j / cm2;

3. Low crushing rate: the anti stripping and anti crushing performance is more than 10 times that of ordinary cast and forged steel balls, the impact times of falling balls are more than 20000, and the actual crushing rate is not more than 1%, which is close to no crushing.

Contact Now E-Mail Telephone WhatsApp

Product Details

Shandong Jinchi Heavy Industry Co., Ltd.is a current production agency integrating r & d, production and income! the principle merchandise of the organisation are put on-resistant metallic balls, wear-resistant metal rods, wear-resistant metallic forgings, mill lining plates, steel systems, and mine accessories. exceptional creates brand and best creates advantages; superior management ideas, state-of-the-art process equipment, and exceptional group of workers have carried out the precise first-rate enchantment in each hyperlink of the manufacturing method, and found out the comprehensive upgrading of product fine.

Hot Rolled Steel Ball

Specification of Hot Rolled Steel Ball

Chemical elements of hot rolling steel balls

Brand	Materials	C	Mn		Si		Cr	S		P	V
JCR-1	50Mn	0.48-0.56	0.70-1.0		0.17-0.37		≤0.25	≤0.035		≤0.035
JCR-2	60Mn	0.57-0.65	0.70-1.0		0.17-0.37		≤0.25	≤0.035		≤0.035
JCR-3	65Mn	0.60-0.70	0.90-1.2		0.17-0.37		≤0.25	≤0.035		≤0.035
JCR-4	75MnCr	0.70-0.85	0.7-0.8		0.17-0.37		0.20-0.60	≤0.030		≤0.030
JCR-5	Wear-resistant Alloy	0.5-0.65	0.4-1.0		1.4-1.8		0.9-1.2	≤0.03		≤0.03	0.1-0.2
Specification of hot rolling steel Grinding balls
Nominal diameter		Diameteical Tolerance		Weight of single ball in average		Surface hardness			Impact toughness
(mm)		(mm)		(g)		(HRC)			(j/cm2 )
Φ20		+2 -1		32		60-65			≥12
Φ25				64
Φ30				110
Φ40				263
Φ50				513
Φ60		+3 -2		888
Φ70				1410
Φ80				2104
Φ90				2996
Φ100				4110
