Good Wear Resistance Grinding Steel Rod
Good Wear Resistance Grinding Steel Rod
(1) No bending
(2) Broken rate is less than or equal to 1%

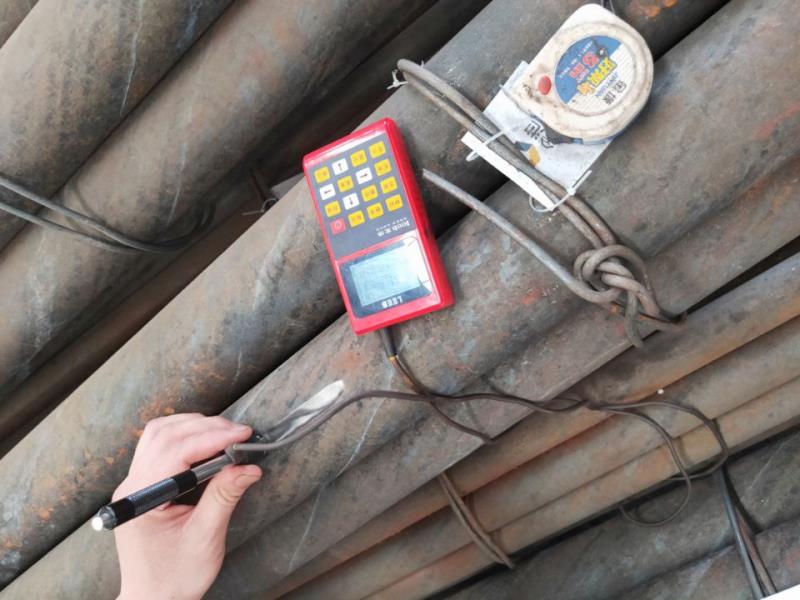

(3) Surface hardness is more than HRC45
(4) High wear resistance
(5) High combined efficiency of grinding mill
Good Wear Resistance Grinding Steel Rod
Our company has strategic cooperation agreements with well-known domestic state-owned enterprises, such as Laiwu branch of Shandong Iron and Steel Co., Ltd., Chengde Jianlong Special Steel Co., Ltd. and Huaigang Special Steel Co., Ltd. of Jiangsu shagang group. Each stage from material ordering to material inspection is reviewed and approved by technical experts, and finally determined by the technical director after being signed and confirmed by the relevant responsible person.
Shandong Jinchi Heavy Industy Joint-stock Co.,Ltd is a professional manufacture of Wear Resistance Grinding Steel Rod in China.The main products of our company are forged steel balls,casting balls,Good Wear Resistance Grinding Steel Rod and cylpebs,with specifications all reach international standards and annual production capacity is over 100000 tons.
The Good Wear Resistance Grinding Steel Rod are produced by the latest technology of Grinding Steel Rod , whose wear resistance is greatly improved and not easy to be lost. The wear resistance of Grinding Steel rod is 4-6 times higher than that of ordinary Grinding Steel Rods on the market, and the Grinding Steel Rods can be adjusted according to the requirements of customers, which can prolong the service life and save cost.
Product performance: continuous bar not bending, abrasive resistance impact toughness.
We can supply differetn materials about Wear Resistance Grinding Steel Rod as following :
Chemical Composition of Good Wear Resistance Grinding Steel Rod
Materials | C% | Si% | Mn% | P% | S% | Cr% | Mo% |
65Mn | 0.62-0.70 | 0.17-0.37 | 0.90-1.20 | ≤0.035 | ≤0.035 | ≤0.25 | |
40Cr | 0.37-0.45 | 0.20-0.40 | 0.50-0.80 | ≤0.035 | ≤0.035 | 0.80-1.10 | |
42Crmo | 0.38-0.45 | 0.20-0.40 | 0.50-0.80 | ≤0.035 | ≤0.035 | 0.90-1.20 | 0.15-0.25 |
Specification of Good Wear Resistance Grinding Steel Rod
Diameter(mm) | Length(mm) | Diameter Tolerance(mm) | Length Tolerance(mm) | Surface Hardness HRC |
30-120 | 3000-6000 | +1.5 | +25 | 45-55 |
