forged grinding balls

Raw materials: Forged Steel Ball, the raw material required for forging steel balls, is all ordered from large national steel plants, and special processing can be carried out according to the special requirements of different wear-resistant steel ball materials.

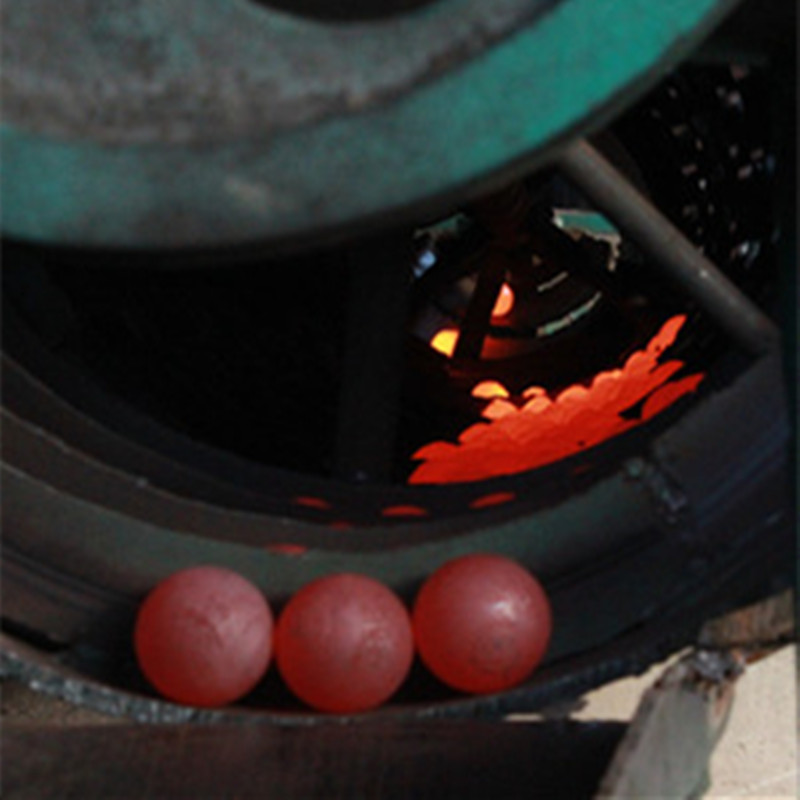

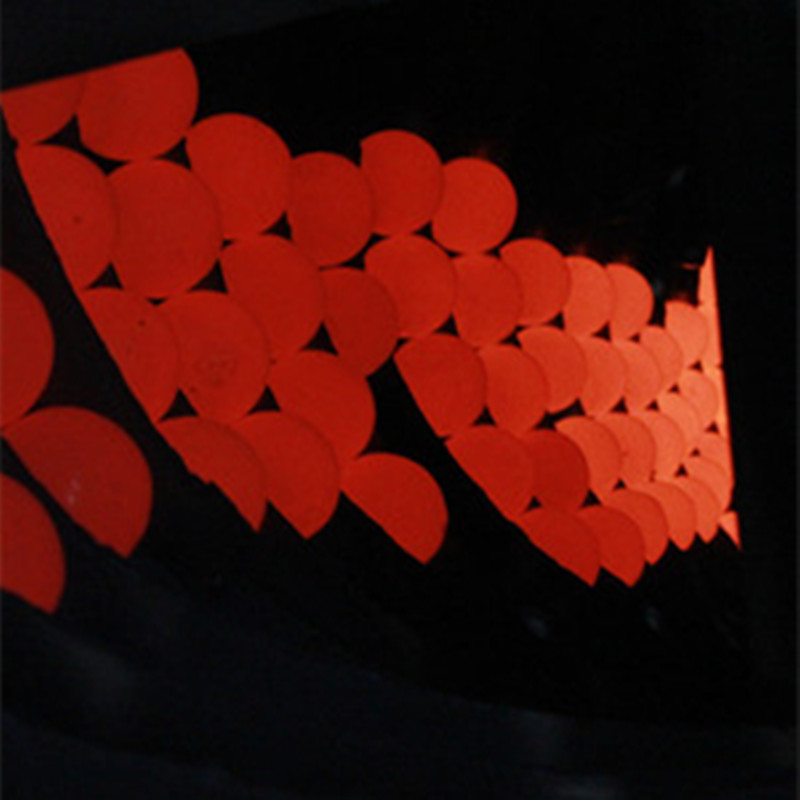

Raw material heating: we use energy-saving induction rod heating electric furnace for heating, which can ensure the uniform temperature of the whole raw material and greatly reduce the loss of raw materials. The uniform temperature of raw materials after heating can ensure the uniform hardness of wear-resistant steel balls during heat treatment.


Contact Now E-Mail Telephone WhatsApp
Product Details

Grinding Forged Steel Balls

Shandong Jinchi Heavy Industry Joint Stock Co.,Ltd, Is a professional manufacturer of grinding products. The main products of our company are GRINDING FORGED STEEL BALLS, GRINDING CASTING STEEL BALLS,GRINDING RODSGRINDING CYLPEBS, with specifications all reaching international standards and annual production capacity is over 100,000 tons.

High-quality raw materials, advanced full-automatic production line, unique heat treatment technology and strict quality control system, these four major advantages make sure our products have stable impact performance, high wear resistance and high combined efficiency of grinding mill.

The company has an independent laboratory, the advanced and accurate lab equipment, to ensure that each step of the production process is performed in accordance with the quality standards. Moreover, our company has been accredited with ISO9001 Quality Certification, OHSAS18001 Occupational health and safety certification and ISO14001 environmental management system certification.

Grinding Forged Steel Balls.jpg



Chemical Composition of Grinding Forged Steel Balls

Materials

C%

Si%

Mn%

P%

S%

Cr%

B2

0.70-0.85

0.17-0.37

0.70-1.00

≤0.035

≤0.035

0.4-0.6

B2-1

0.55-0.70

0.15-0.30

0.65-0.85

≤0.020

≤0.020

0.70-1.10

High Carbon B2

0.85-1.10

0.15-0.45

0.40-1.20

≤0.035

≤0.035

0.20-1.10

B3

0.58-0.66

1.70-1.90

0.68-0.80

≤0.030

≤0.030

0.78-0.90

45#

0.42-0.50

0.17-0.37

0.5-0.8

≤0.035

≤0.035

0.25max

B4

0.65-0.75

1.20-1.40

0.50-0.70

≤0.025

≤0.025

0.85-1.00

B6

0.75-0.90

0.17-0.37

0.8-1.02

≤0.035

≤0.035

0.88-0.98

B6-1

0.82-0.90

0.15-0.35

0.90-1.05

≤0.020

≤0.020

0.88-0.98

42CrMo

0.38-0.45

0.20-0.40

0.50-0.80

≤0.035

≤0.035

0.90-1.20

40Cr

0.37-0.45

0.20-0.40

0.50-0.80

≤0.035

≤0.035

0.80-1.10

65MN

0.62-0.70

0.17-0.37

0.90-1.20

≤0.035

≤0.035

≤0.25

60MN

0.57-0.65

0.17-0.37

0.70-1.00

≤0.035

≤0.035

≤0.25

50MN

0.48-0.56

0.17-0.37

0.70-1.00

≤0.035

≤0.035

≤0.25

Specification of  Grinding Forged Steel Balls

Diameter(mm)

Diameter Tolerance(mm)

Surface Hardness(HRC)

Impact Toughness(j/cm2)

Φ20

+2 —1

60HRC

≥12

Φ25

Φ30

Φ40

Φ50

Φ60

+3 —2

Φ70

Φ80

Φ90

Φ100

+4 —2

Φ110

Φ120

58HRC

Φ130

Φ140

+4 —3

55HRC

Φ150


Packing of Grinding Forged Steel Balls

(1)Container Bag:Dia20mm-150mm  1000kg/Container Bag

(2)Steel Drums:Dia20mm-80mm 900kg/Drum  Dia90mm-150mm 850kg/Drums

(3)Steel Drum on Pallet or Bag on Pallet

Grinding Forged Steel Balls
