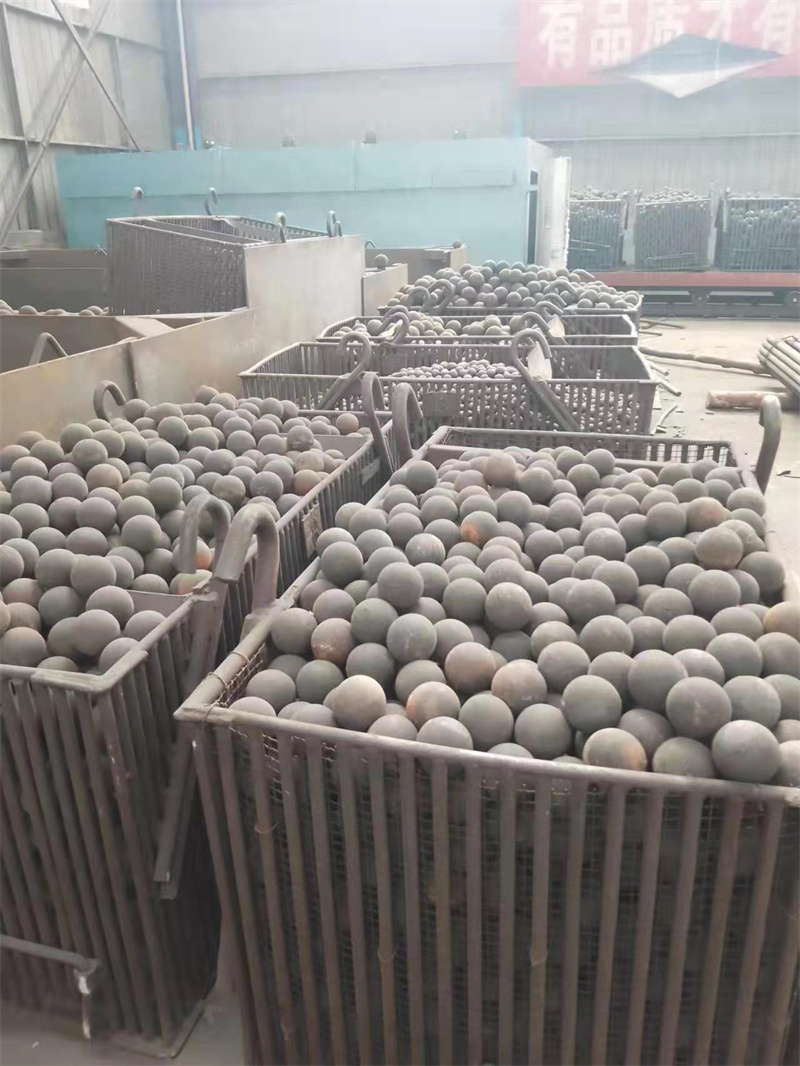

Forged Steel Grinding Ball for mining
Size: 20mm-150mm
Material: B2, B3, B6, 45#, 40Cr, 42CrMo, 65MN, 60MN,
Uniform Hardness;
High Wear Resistance;
Low Breakage Rate;
Without loss of round;
High impact toughness;
breakage rate: ＜1%
Annual production is over 100.000tons;
Forged Steel Grinding Ball manaufacturer is here, with 26 years in China. products are exported to more than 30 countries and regions, with an annual production capacity of 100,000 tons, mainly used for mining, cement plant and ball mill, and cooperation with many large mines and cement plants for many years.
Chemical Composition of Forged Grinding Ball:
Materials | C% | Si% | Mn% | P% | S% | Cr% |
B2 | 0.70-0.85 | 0.17-0.37 | 0.70-1.00 | ≤0.035 | ≤0.035 | 0.4-0.6 |
B2-1 | 0.55-0.70 | 0.15-0.30 | 0.65-0.85 | ≤0.020 | ≤0.020 | 0.70-1.10 |
High Carbon B2 | 0.85-1.10 | 0.15-0.45 | 0.40-1.20 | ≤0.035 | ≤0.035 | 0.20-1.10 |
B3 | 0.58-0.66 | 1.70-1.90 | 0.68-0.80 | ≤0.030 | ≤0.030 | 0.78-0.90 |
45# | 0.42-0.50 | 0.17-0.37 | 0.5-0.8 | ≤0.035 | ≤0.035 | 0.25max |
B4 | 0.65-0.75 | 1.20-1.40 | 0.50-0.70 | ≤0.025 | ≤0.025 | 0.85-1.00 |
B6 | 0.75-0.90 | 0.17-0.37 | 0.8-1.02 | ≤0.035 | ≤0.035 | 0.88-0.98 |
B6-1 | 0.82-0.90 | 0.15-0.35 | 0.90-1.05 | ≤0.020 | ≤0.020 | 0.88-0.98 |
BU | 0.95-1.05 | 0.15-0.35 | 0.95-1.05 | ≤0.025 | ≤0.025 | 0.45-0.55 |
1090 | 0.90-1.10 | 0.17-0.37 | 0.60-0.90 | ≤0.025 | ≤0.025 | ≤0.025 |
42CrMo | 0.38-0.45 | 0.20-0.40 | 0.50-0.80 | ≤0.035 | ≤0.035 | 0.90-1.20 |
40Cr | 0.37-0.45 | 0.20-0.40 | 0.50-0.80 | ≤0.035 | ≤0.035 | 0.80-1.10 |
65MN | 0.62-0.70 | 0.17-0.37 | 0.90-1.20 | ≤0.035 | ≤0.035 | ≤0.25 |
60MN | 0.57-0.65 | 0.17-0.37 | 0.70-1.00 | ≤0.035 | ≤0.035 | ≤0.25 |
50MN | 0.48-0.56 | 0.17-0.37 | 0.70-1.00 | ≤0.035 | ≤0.035 | ≤0.25 |
Specification of Grinding Steel Ball:
Diameter(mm) | Diameter Tolerance(mm) | Surface Hardness(HRC) | Impact Toughness(j/cm2) |
Φ20 | +2， —1 | ＞60HRC | ≥12 |
Φ25 | |||
Φ30 | |||
Φ40 | |||
Φ50 | |||
Φ60 | +3， —2 | ||
Φ70 | |||
Φ80 | |||
Φ90 | |||
Φ100 | +4， —2 | ||
Φ110 | |||
Φ120 | ＞58HRC | ||
Φ130 | |||
Φ140 | +4， —3 | ＞55HRC | |
Φ150 |
The export products have passed SGS inspection, BV testing, etc., the pursuit of 100% qualified quality as the goal.
If the customer needs a third party to reinspect the inspection results, our company can assist in handling the international SGS (the most authoritative international inspection organization) inspection.
We are a professional manufacturer of grinding steel balls, free samples can be supply for your inspection and testing, welcome to visit the factory at any time, looking forward to cooperating with you.
