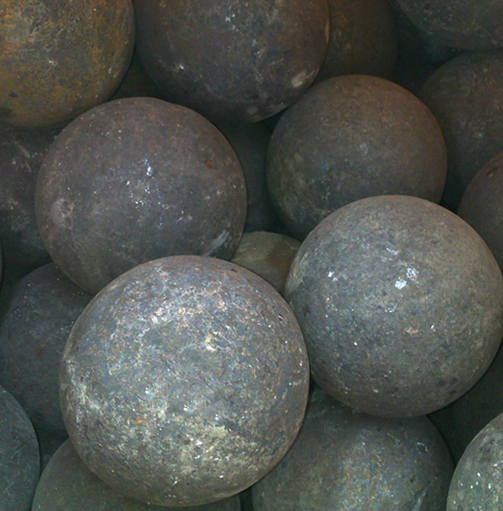

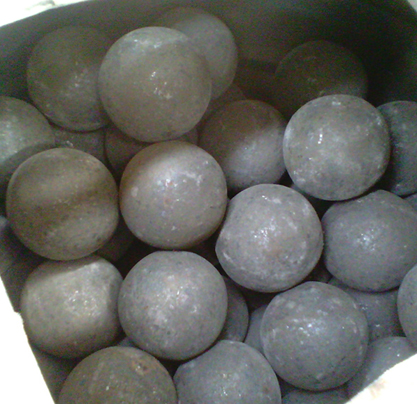

Grinding media forged steel ball
Our forged steel balls and hot rolling steel ball have precise size, round geometry, high hardness and good mechanical properties, and have excellent quality of wear resistance, no deformation and no cracking. Its characteristics are as follows:
1. High overall hardness: the surface hardness can reach 58-65hrc, the volume hardness can reach 55-62hrc, and the hardness gradient distribution is uniform.
2. High impact toughness: the impact toughness is greater than 12j / cm2;
3. Low crushing rate: the anti stripping and anti crushing performance is more than 10 times that of ordinary cast steel balls, the actual breaking rate is not more than 1%.
Forged steel balls are produced with our advanced forging era and strict control of all components of the heat remedy process maximizes wear performance and effect resistance.
Specification of Grinding media forged steel ball
Chemical elements of hot rolling steel balls
Brand | Materials | C | Mn | Si | Cr | S | P | V | |||
JC-1 | 50Mn | 0.48-0.56 | 0.70-1.0 | 0.17-0.37 | ≤0.25 | ≤0.035 | ≤0.035 | ||||
JC-2 | 60Mn | 0.57-0.65 | 0.70-1.0 | 0.17-0.37 | ≤0.25 | ≤0.035 | ≤0.035 | ||||
JC-3 | 65Mn | 0.62-0.70 | 0.90-1.2 | 0.17-0.37 | ≤0.25 | ≤0.035 | ≤0.035 | ||||
JC-4 | B2 | 0.72-0.85 | 0.70-0.80 | 0.17-0.37 | 0.40-0.70 | ≤0.035 | ≤0.035 | ||||
JC-5 | B3 | 0.58-0.70 | 0.70-1.00 | 1.50-1.90 | 0.70-0.90 | ≤0.035 | ≤0.035 | ||||
Specification of hot rolling steel Grinding balls | |||||||||||
Nominal diameter | Diameteical Tolerance | Weight of single ball in average
| Surface hardness
| Impact toughness
| |||||||
(mm) | (mm) | (g) | (HRC) | (j/cm2 ) | |||||||
Φ20 | +2 -1 | 32 | 60-65 |
≥12 | |||||||
Φ25 | 64 | ||||||||||
Φ30 | 110 | ||||||||||
Φ40 | 263 | ||||||||||
Φ50 | 513 | ||||||||||
Φ60 | +3 -2 | 888 | |||||||||
Φ70 | 1410 | ||||||||||
Φ80 | 2104 | ||||||||||
Φ90 | 2996 | ||||||||||
Φ100 | 4110 | ||||||||||
Product Features
Uniform hardness
Non crushing and grinding resistance
High impact value
High comprehensive efficiency of the mill
4. Production process
Manufacturing Process of Grinding media forged steel ball
Test equipment:
We offer value for our customers through our qualified grinding ball, grinding media products, professional service and dependable delivery. Look forward to coooperate with you!
