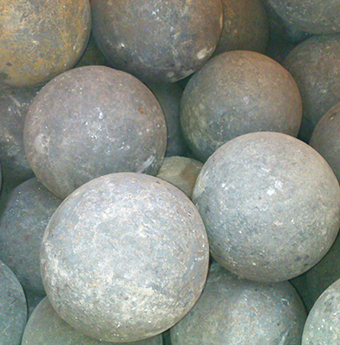

Forged grinding steel ball china manufacturer
Our Forged and casting ball mill steel ball have following advantages:
1. Material Quality: We buy steel materials directly from Laigang Group, JIYUAN, which are the biggest steel companies in China who specially produce steel for grinding balls.
2. Product Range: We produce special steel grinding balls according to customer requirement. Both cast & forged type and have complete range.
3. Capacity: Our production capacity is now about 100000 MT. This huge production capacity ensures nonstop continuous delivery of media to you.
4. Production facility: At present we use advanced automatic production line which makes sure the quality is highly consistent.
5. Delivery: We provide fast delivery after order confirmation due to automated production system. It can be as quick as 14 days/ 2 weeks depending on requirement.
6. Quality Control: Our company has an independent laboratory, the advanced and accurate lab equipment, to ensure that each step of the production process is performed in accordance with the quality standards.

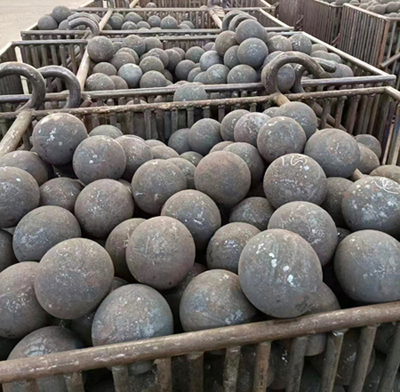

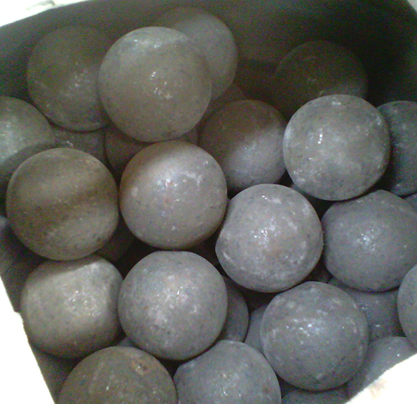

We are a professional manufacturer and developer of wear-resistant forged grinding steel balls, balls are produced by new method of automatic production line, which ensures that the composition of the material, the uniform hardness of the inside and outside. The wear-resistant industry is improved rapidly.
We can supply forged balls with different steel grades:
Brand | Materials | C | Mn | Si | Cr | S | P | V | |
JC-1 | 50Mn | 0.48-0.56 | 0.70-1.0 | 0.17-0.37 | ≤0.25 | ≤0.035 | ≤0.035 | ||
JC-2 | 60Mn | 0.57-0.65 | 0.70-1.0 | 0.17-0.37 | ≤0.25 | ≤0.035 | ≤0.035 | ||
JC-3 | 65Mn | 0.62-0.70 | 0.90-1.2 | 0.17-0.37 | ≤0.25 | ≤0.035 | ≤0.035 | ||
JC-4 | B2 | 0.72-0.85 | 0.70-0.80 | 0.17-0.37 | 0.40-0.70 | ≤0.035 | ≤0.035 | ||
JC-5 | B3 | 0.58-0.70 | 0.70-1.00 | 1.50-1.90 | 0.70-0.90 | ≤0.035 | ≤0.035 | ||
JC-6 | B6 | 0.80-0.95 | 0.80-1.00 | 0.17-0.37 | 0.80-1.00 | ≤0.035 | ≤0.035 | ||
Specification of Grinding Balls | |||||||||
Nominal diameter | Diameteical Tolerance | Weight of single ball in average
| Surface hardness
| Impact toughness
| |||||
(mm) | (mm) | (g) | (HRC) | (j/cm2 ) | |||||
Φ20 | +2 -1 | 32 | 60-65 |
≥12 | |||||
Φ25 | 64 | ||||||||
Φ30 | 110 | ||||||||
Φ40 | 263 | ||||||||
Φ50 | 513 | ||||||||
Φ60 | +3 -2 | 888 | |||||||
Φ70 | 1410 | ||||||||
Φ80 | 2104 | ||||||||
Φ90 | 2996 | ||||||||
Φ100 | 4110 | ||||||||
Product Features:
1. Uniform hardness: surece can reach 60-65HRC
2. High grinding resistance
3. High impact value:
4. Low breakage: less than 1%

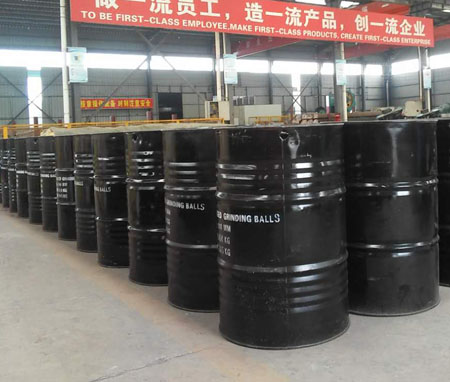

Product Package
We offer value for our customers through our qualified grinding ball, grinding media products, professional service and dependable delivery. Look forward to coooperate with you!
