Grinding Media steel balls in china
Grinding Media steel balls in china
1）Size: 20mm-150mm
2）Material: B2, B3, B6, 45#, 40Cr, 42CrMo, 65MN, 60MN,
3）Uniform Hardness;
4）High Wear Resistance;
5）Low Breakage Rate;
6）Without loss of round;
7）High impact toughness;
8）Breakage rate: <1%
9）Annual production is over 100.000tons;
Grinding Media steel balls in china
We are well aware of the importance of Forged and Casting Grinding Steel Ball to the crushing industry, and providing customers with more wear-resistant steel balls has been our constant pursuit for 25 years. Years of accumulation of technology and experience have made our product quality control increasingly perfect, and we have been able to see more and more customers adding value due to the use of our products.
Our Forged and casting balll grinding media have following advantages:
1. Material Quality: We buy steel materials directly from Laigang Group, JIYUAN, which are the biggest steel companies in China who specially produce steel for grinding balls
Brand | Materials | C | Mn | Si | Cr | S | P | V | |
JC-1 | 50Mn | 0.48-0.56 | 0.70-1.0 | 0.17-0.37 | ≤0.25 | ≤0.035 | ≤0.035 | ||
JC-2 | 60Mn | 0.57-0.65 | 0.70-1.0 | 0.17-0.37 | ≤0.25 | ≤0.035 | ≤0.035 | ||
JC-3 | 65Mn | 0.62-0.70 | 0.90-1.2 | 0.17-0.37 | ≤0.25 | ≤0.035 | ≤0.035 | ||
JC-4 | B2 | 0.72-0.85 | 0.70-0.80 | 0.17-0.37 | 0.40-0.70 | ≤0.035 | ≤0.035 | ||
JC-5 | B3 | 0.58-0.70 | 0.70-1.00 | 1.50-1.90 | 0.70-0.90 | ≤0.035 | ≤0.035 | ||
JC-6 | B6 | 0.80-0.95 | 0.80-1.00 | 0.17-0.37 | 0.80-1.00 | ≤0.035 | ≤0.035 | ||
Specification of Grinding Balls | |||||||||
Nominal diameter | Diameteical Tolerance | Weight of single ball in average
| Surface hardness
| Impact toughness
| |||||
(mm) | (mm) | (g) | (HRC) | (j/cm2 ) | |||||
Φ20 | +2 -1 | 32 | 60-65 |
≥12 | |||||
Φ25 | 64 | ||||||||
Φ30 | 110 | ||||||||
Φ40 | 263 | ||||||||
Φ50 | 513 | ||||||||
Φ60 | +3 -2 | 888 | |||||||
Φ70 | 1410 | ||||||||
Φ80 | 2104 | ||||||||
Φ90 | 2996 | ||||||||
Φ100 | 4110 | ||||||||
2. Product Range: We produce special steel grinding balls according to customer requirement. Both cast & forged type and have complete range.
3. Capacity: Our production capacity is now about 100000 MT. This huge production capacity ensures nonstop continuous delivery of media to you.

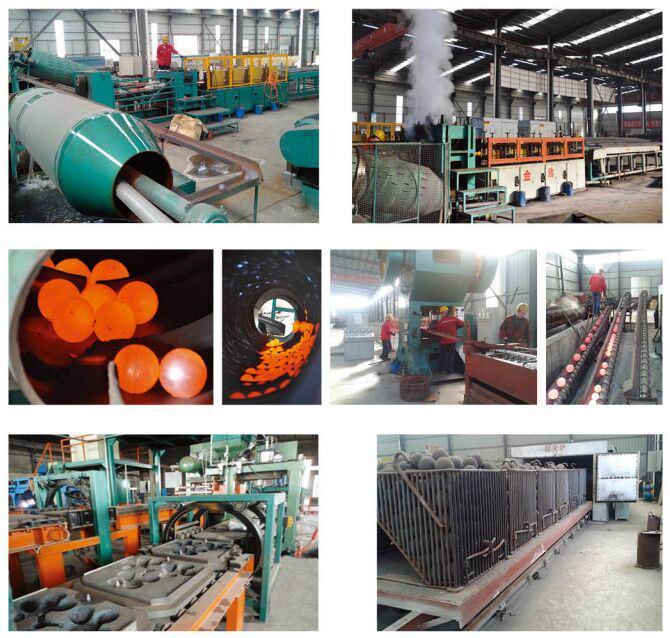

4. Production facility: At present we use advanced automatic production line which makes sure the quality is highly consistent.
5. Delivery: We provide fast delivery after order confirmation due to automated production system. It can be as quick as 14 days/ 2 weeks depending on requirement.
6. Quality Control: Our company has an independent laboratory, the advanced and accurate lab equipment, to ensure that each step of the production process is performed in accordance with the quality standards
Chemical Components | ||||||||
Type | Chemical components | |||||||
C | Si | Mn | Cr | Mo | Cu | P | S | |
Low-Cr | 1.8-3.3 | ≤1.5 | 0.3-1.5 | 1-3 | ≤1.0 | ≤0.8 | ≤0.10 | ≤0.10 |
Medium-Cr | 1.8-3.3 | ≤1.2 | 0.3-1.5 | 4-9 | ≤1.5 | ≤0.8 | ≤0.10 | ≤0.10 |
High-Cr | 1.8-3.3 | ≤1.2 | 0.3-1.5 | 10-18 | ≤1.0 | ≤1.2 | ≤0.10 | ≤0.06 |
Superhigh-Cr | 1.8-3.3 | ≤1.2 | 0.3-1.5 | 19-35 | ≤2.0 | ≤1.2 | ≤0.10 | ≤0.06 |
1. High usual hardness: the floor hardness can attain 58-65hrc, the volume hardness can reach 55-62hrc, and the hardness gradient distribution is uniform.
2. High impact toughness: the impact toughness is greater than 12j / cm2;
3. Low crushing rate: the anti stripping and anti crushing overall performance is more than 10 instances that of everyday solid metallic balls, the real breaking price isn't greater than 1%.
