Good Wear Resistance Grinding Rod Steel Bar

Good Wear Resistance Grinding Rod Steel Bar are produced by the latest technology-automatic production lines which are developed by our company. The wear resistance is greatly improved. The wear resistance shows 4-6 times higher than that of ordinary on the market.


  Contact Now E-Mail Telephone WhatsApp
Product Details

          Good Wear Resistance Grinding Rod Steel Bar are produced via the brand new technology-automatic manufacturing lines which can be developed by means of our employer. the damage resistance is substantially improved. the damage resistance indicates 4-6 instances better than that of normal on the market.

Hot rolled grinding metallic rod metal bar  are prodcued by using present day technology-automated manufacturing strains which are developed with the aid of our organization.  the raw substances used are from big-scale steel mills in china, the main materials are 65mn, 60mn, 45 metal, 40cr, b2 and so forth. dia :40mm-180mm ,duration can be custom designed consistent with the patron necessities.

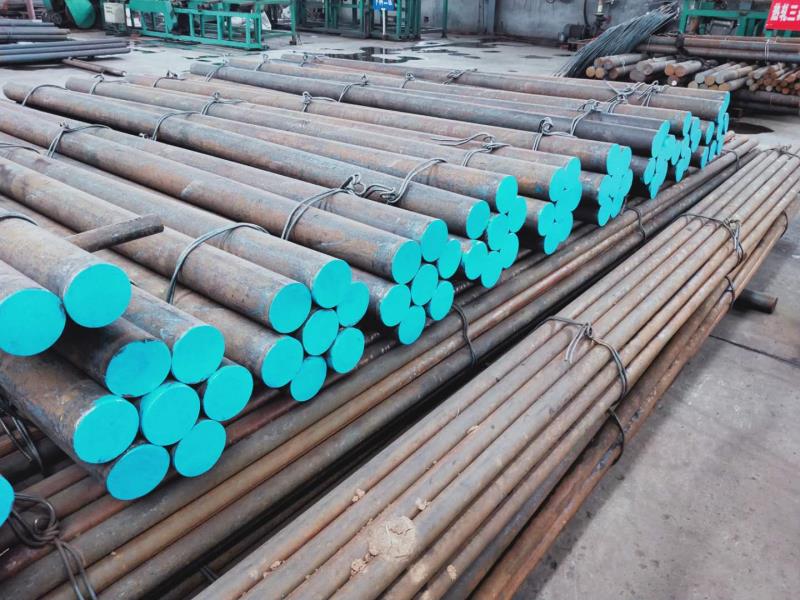

Good Wear Resistance Grinding Rod Steel Bar.jpg

Good Wear Resistance Grinding Rod Steel Bar.jpg

Chemical Composition of Grinding Steel Rods

Materials

C%

Si%

Mn%

P%

S%

Cr%

Mo%

65Mn

0.62-0.70

0.17-0.37

0.90-1.20

≤0.035

≤0.035

≤0.25


40Cr

0.37-0.45

0.20-0.40

0.50-0.80

≤0.035

≤0.035

0.80-1.10


42Crmo

0.38-0.45

0.20-0.40

0.50-0.80

≤0.035

≤0.035

0.90-1.20

0.15-0.25

 Specification of Grinding Steel Rods

Diameter(mm)

Length(mm)

Diameter Tolerance(mm)

Length Tolerance(mm)

Surface Hardness HRC

30-120

3000-6000

+1.5

+25

45-55

Scope of Application:

Rod mill for coal-water slurry gasification, sand making, bauxite, tungsten tin ore, steel slag and other industries
