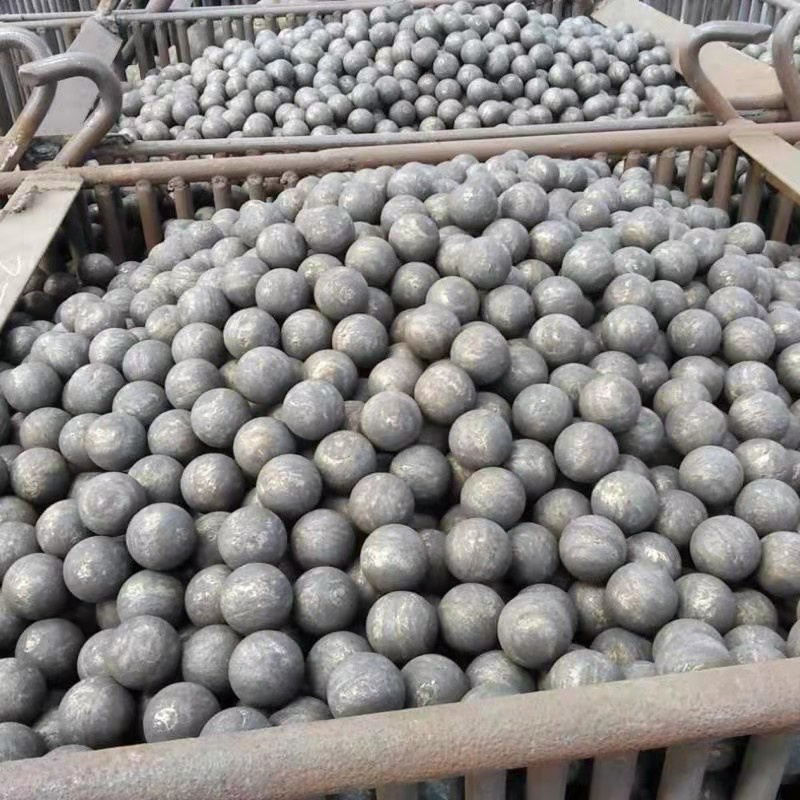

Grinding Steel Ball China Manufacturer
Size: 20mm-150mm
Material: B2, B3, B6, 45#, 40Cr, 42CrMo, 65MN, 60MN,
Uniform Hardness;
High Wear Resistance;
Low Breakage Rate;
Without loss of round;
High impact toughness;
breakage rate: ＜1%
Annual production is over 100.000tons;
Grinding steel Ball China manufacturer is here.

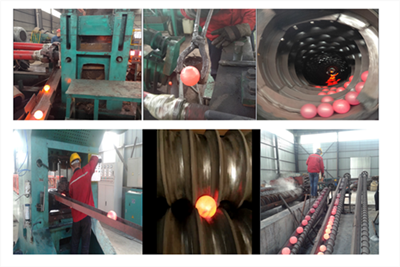

We prodeuce Grinding Steel Ball for mining, cement plant and ball mill with 26 years in China. have professional and technical personnel and quality control team, the main testing equipment has the ultrasonic flaw detector, Germany imports spectrum analyzer, metal cutting core-pulling machine, metallographic microscope, rockwell hardness tester, impact tester, drop test machine, hand-held infrared thermometer, vernier caliper, etc., quality control and inspection of Steel Ball.
The export products have passed SGS inspection, BV testing, etc., the pursuit of 100% qualified quality as the goal.
If the customer needs a third party to reinspect the inspection results, our company can assist in handling the international SGS (the most authoritative international inspection organization) inspection.
Chemical Composition of Forged Grinding Ball:
| Materials | C% | Si% | Mn% | P% | S% | Cr% |
| B2 | 0.70-0.85 | 0.17-0.37 | 0.70-1.00 | ≤0.035 | ≤0.035 | 0.4-0.6 |
| B2-1 | 0.55-0.70 | 0.15-0.30 | 0.65-0.85 | ≤0.020 | ≤0.020 | 0.70-1.10 |
| High Carbon B2 | 0.85-1.10 | 0.15-0.45 | 0.40-1.20 | ≤0.035 | ≤0.035 | 0.20-1.10 |
| B3 | 0.58-0.66 | 1.70-1.90 | 0.68-0.80 | ≤0.030 | ≤0.030 | 0.78-0.90 |
| 45# | 0.42-0.50 | 0.17-0.37 | 0.5-0.8 | ≤0.035 | ≤0.035 | 0.25max |
| B4 | 0.65-0.75 | 1.20-1.40 | 0.50-0.70 | ≤0.025 | ≤0.025 | 0.85-1.00 |
| B6 | 0.75-0.90 | 0.17-0.37 | 0.8-1.02 | ≤0.035 | ≤0.035 | 0.88-0.98 |
| B6-1 | 0.82-0.90 | 0.15-0.35 | 0.90-1.05 | ≤0.020 | ≤0.020 | 0.88-0.98 |
| BU | 0.95-1.05 | 0.15-0.35 | 0.95-1.05 | ≤0.025 | ≤0.025 | 0.45-0.55 |
| 1090 | 0.90-1.10 | 0.17-0.37 | 0.60-0.90 | ≤0.025 | ≤0.025 | ≤0.025 |
| 42CrMo | 0.38-0.45 | 0.20-0.40 | 0.50-0.80 | ≤0.035 | ≤0.035 | 0.90-1.20 |
| 40Cr | 0.37-0.45 | 0.20-0.40 | 0.50-0.80 | ≤0.035 | ≤0.035 | 0.80-1.10 |
| 65MN | 0.62-0.70 | 0.17-0.37 | 0.90-1.20 | ≤0.035 | ≤0.035 | ≤0.25 |
| 60MN | 0.57-0.65 | 0.17-0.37 | 0.70-1.00 | ≤0.035 | ≤0.035 | ≤0.25 |
| 50MN | 0.48-0.56 | 0.17-0.37 | 0.70-1.00 | ≤0.035 | ≤0.035 | ≤0.25 |
Specification of Grinding Steel Ball:
| Diameter(mm) | Diameter Tolerance(mm) | Surface Hardness(HRC) | Impact Toughness(j/cm2) |
| Φ20 | +2， —1 | ＞60HRC | ≥12 |
| Φ25 | |||
| Φ30 | |||
| Φ40 | |||
| Φ50 | |||
| Φ60 | +3， —2 | ||
| Φ70 | |||
| Φ80 | |||
| Φ90 | |||
| Φ100 | +4， —2 | ||
| Φ110 | |||
| Φ120 | ＞58HRC | ||
| Φ130 | |||
| Φ140 | +4， —3 | ＞55HRC | |
| Φ150 |
We are a professional manufacturer of grinding steel balls, steel rods, and cylpebs, free samples can be supply for your inspection and testing, looking forward to cooperating with you.
